52-04 Access Door to Opening Control of Landing Gear Doors on Ground 195 BB - 196 BB

52-04 Access Door To Opening Control Of Landing Gear Doors On Ground195 BB - 196 BB	Quantity Installed
	2

One may be missing for five flight cycles.

Note:

May be combined with MCDL items:

-	52-01 (Refer to 52-01 Toilet Servicing and Drainage Door)
-	52-02 (Refer to 52-02 Access Door to Hydraulic Ground Connectors 197 CB - 197 EB - 198 CB)
-	52-03 (Refer to 52-03 Access Door to Potable Water Filling and Drainage)
-	52-05 (Refer to 52-05 Access Door to Air Conditioning Ground Supply 191 CB)
-	52-20 (Refer to 52-20 Access Door to HP Air Ground Connector 191 DB).

•	Limitations:
	Flight in forecasted thunderstorm conditionis not allowed.

•

Performance:

The following performance penaltiesare applicable:

-	Takeoff andapproach climb performance limiting weights are reduced by 63 kg (139 lb)
-	En route performancelimiting weight is reduced by 72 kg (159 lb).

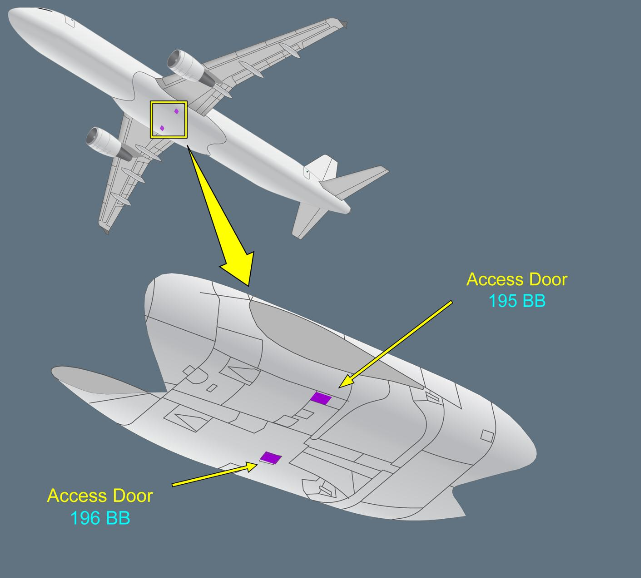

ILLUSTRATION ACCESS DOOR TO OPENING CONTROL OF LANDING GEAR DOORS ON GROUND 195 BB - 196 BB

Effectivity: 2
