52-01 Toilet Servicing and Drainage Door

52-01 Toilet Servicing and Drainage Door 172 AR	Quantity Installed
	1

May be missing.

Note:

Following thedeactivation procedures of the toilet servicing and draining door,the toilet system remains operative. Ensure toilets are not used onground due to possible ongoing servicing operations.

May be combined with MCDL items:

-	52-02 (Refer to 52-02 Access Door to Hydraulic Ground Connectors 197 CB - 197 EB - 198 CB)
-	52-03 (Refer to 52-03 Access Door to Potable Water Filling and Drainage)
-	52-04 (Refer to 52-04 Access Door to Opening Control of Landing Gear Doors on Ground 195 BB - 196 BB)
-	52-05 (Refer to 52-05 Access Door to Air Conditioning Ground Supply 191 CB)
-	52-20 (Refer to 52-20 Access Door to HP Air Ground Connector 191 DB).

•

Performance:

The following performance penalties areapplicable:

-	Takeoff andapproach climb performance limiting weights are reduced by 63 kg (139 lb)
-	En route performancelimiting weight is reduced by 72 kg (159 lb).

Ref to AMM TASK: 52-42-00-040-002

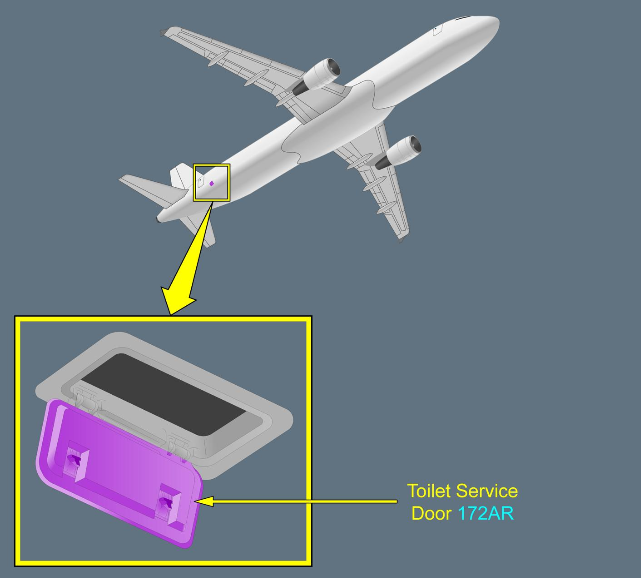

ILLUSTRATION TOILET SERVICING AND DRAINAGE DOOR

Effectivity: 2
