52-02 Access Door to Hydraulic Ground Connectors 197 CB - 197 EB - 198 CB

52-02 Access Door To Hydraulic Ground Connectors 197 CB - 197 EB- 198 CB	Quantity Installed
	3

One may be missing.

Note:

May be combined with MCDL items:

-	52-01 (Refer to 52-01 Toilet Servicing and Drainage Door)
-	52-03 (Refer to 52-03 Access Door to Potable Water Filling and Drainage)
-	52-04 (Refer to 52-04 Access Door to Opening Control of Landing Gear Doors on Ground 195 BB - 196 BB)
-	52-05 (Refer to 52-05 Access Door to Air Conditioning Ground Supply 191 CB)
-	52-20 (Refer to 52-20 Access Door to HP Air Ground Connector 191 DB).

•

Performance:

The following performance penalties areapplicable:

-	Takeoff andapproach climb performance limiting weights are reduced by 63 kg (139 lb)
-	En route performancelimiting weight is reduced by 72 kg (159 lb).

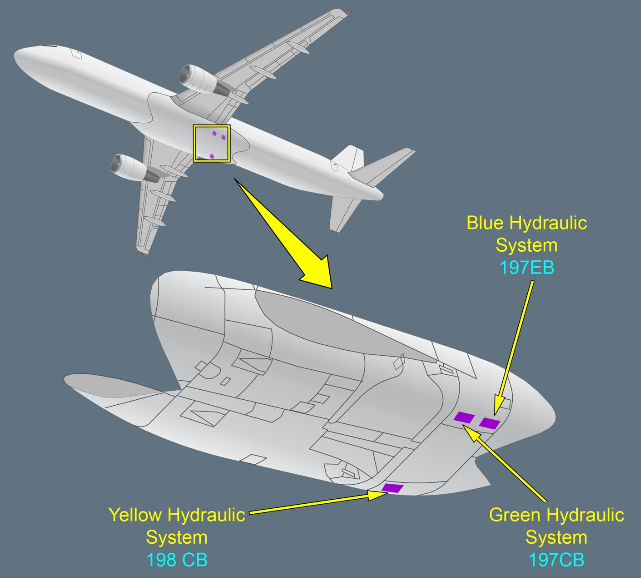

ILLUSTRATION ACCESS DOOR TO HYDRAULIC GROUND CONNECTORS 197 CB - 197 EB - 198 CB

Effectivity: 2
