52-10 Nose Landing Gear Aft Door (715, 716)

52-10 Nose Landing Gear Aft Door (715, 716)	Quantity Installed
	2

All may be missing.

Note:

May be combined with MCDL item 52-11 (Refer to 52-11 Nose Landing Gear Leg Door (712))

•

Limitations:

Flight with landing gear down is required.

Refer to General

•

Performance:

Note:

Reference performancefor penalties computations are performance with landing gear down.

The following performance penaltiesare applicable:

-	Takeoff andapproach climb performance limiting weights are reduced by 79 kg (175 lb)
-	En-route performancelimiting weight is reduced by 100 kg (221 lb)
-	Fuel consumptionis increased by 0.25 %.

When combined with MCDL item52-09 (Refer to 52-09 Nose Landing Gear Main Door (713, 714)), the performancepenalties published in 52-09 are applicable.

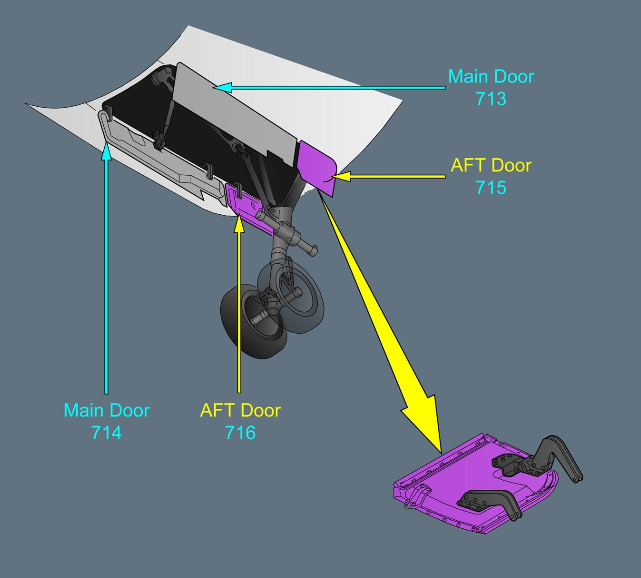

ILLUSTRATION NOSE LANDING GEAR AFT DOOR (715, 716)

Effectivity: 2
