23-01 Static Discharger

23-01 Static Discharger	Quantity Installed
	-

20 % of static dischargersmay be missing or inoperative on each the following areas:

-	RIGHT wing
-	LEFT wing
-	Vertical stabilizer(including rudder)
-	RIGHT horizontalstabilizer (including elevator)
-	LEFT horizontalstabilizer (including elevator).

Note:

If a staticdischarger is missing or inoperative on a flap track fairing, the VHF and HF sound quality may be slightly degraded.

When combinedwith the case of dispatch with a wing tip fence missing, 20 % of the remaining static dischargers of the affected wing are allowedto be inoperative or missing (Refer to 57-01 Wing Tip Fence).

23-01 Static Discharger	Quantity Installed
	-

20 % of static dischargersmay be missing or inoperative on each of the following areas:

-	RIGHT wing
-	LEFT wing
-	Vertical stabilizer(including rudder)
-	RIGHT horizontalstabilizer (including elevator)
-	LEFT horizontalstabilizer (including elevator).

Note:

Only one staticdischarger may be missing per sharklet.

If a staticdischarger is missing or inoperative on a flap track fairing, the VHF and HF sound quality may be slightly degraded.

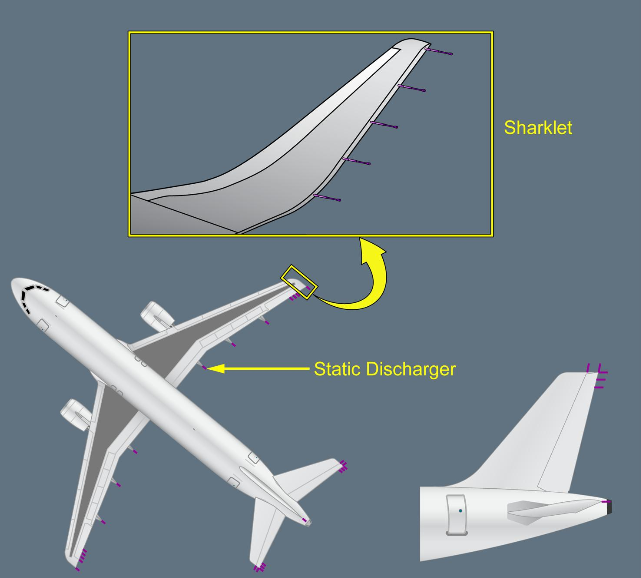

ILLUSTRATION STATIC DISCHARGER

Effectivity: 4

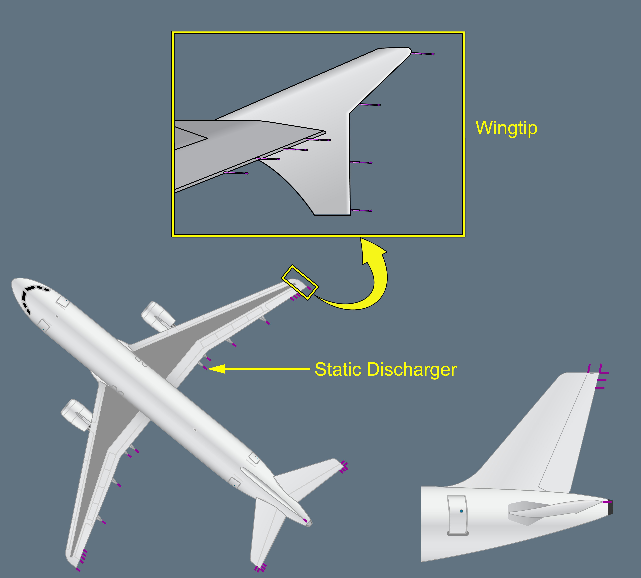

ILLUSTRATION STATIC DISCHARGER

Effectivity: 13
